• Product description

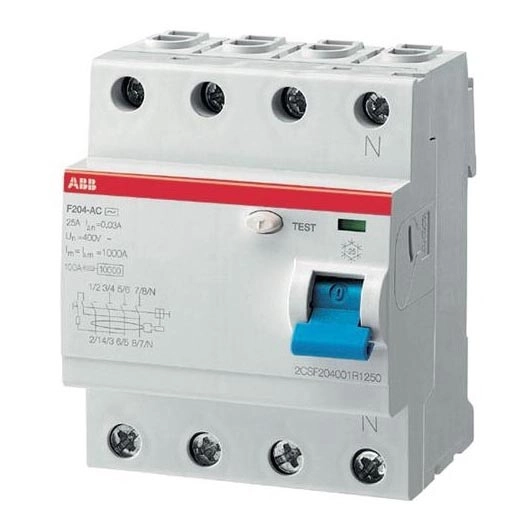

  • 3-phase residual current device which is designed for installation on a DIN rail.
  • Suitable for use in households or in commercial and industrial areas.
  • Contains contact position indicator.
  • Number of poles: 4.
  • Rated current: 25 A.
  • Rated residual current: 30 mA.
  •  Rated conditional short-circuit current with pre-fuse: 10 kA.
  • Impact resistance wave (8/20): 250 A.
  • Rated voltage: 230/400 V AC.
  • Rated frequency: 50/60 Hz.
  • Tightening torque: 2,8 Nm.
  • Connection of stranded/rigid copper conductor: max. 25 mm².
  • Connection of flexible copper conductor: max. 25 mm².
  • Maximum busbar cross-section: 10 mm².
