• Product description

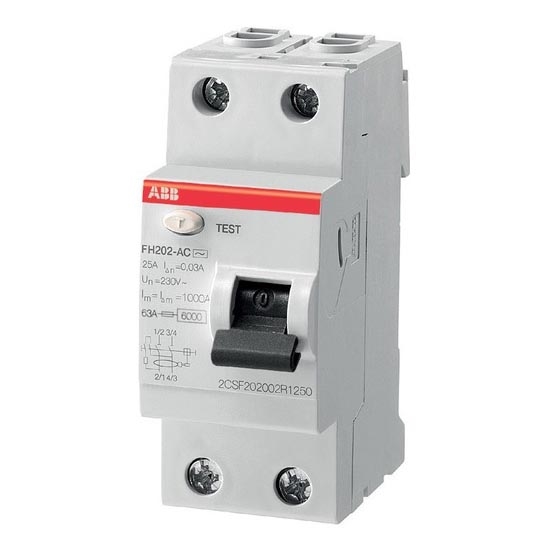

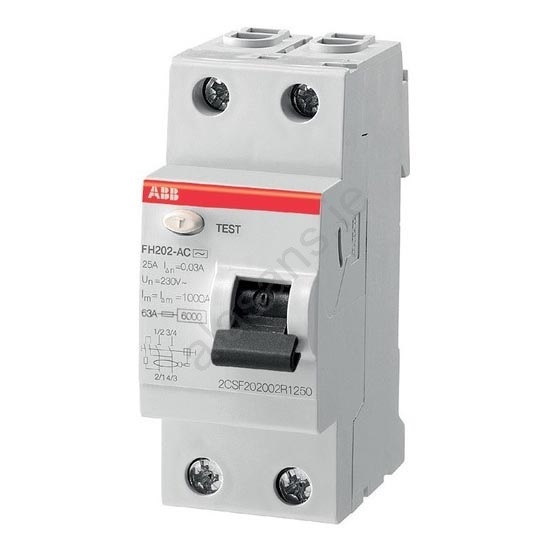

  • One-phase residual current device which is designed for installation on a DIN rail.
  • Suitable for use in households or in commercial and industrial areas.
  • Contains contact position indicator.
  • Number of poles: 2.
  • Rated current: 25 A.
  • Rated residual current: 30 mA.
  • Type: A.
  •  Rated conditional short-circuit current with pre-fuse: 6 kA.
  • Impact resistance wave (8/20): 250 A.
  • Rated voltage: 230/400 V AC.
  • Rated frequency: 50/60 Hz.
  • Tightening torque: 2,8 Nm.
  • Connection of stranded/rigid copper conductor: max. 25 mm².
  • Connection of flexible copper conductor: max. 25 mm².
  • Maximum busbar cross-section: 10 mm².







  Special coupon offer applies to this product.

  Brand:

  ABB



  This product is listed in the following categories

  ABB, Brands, Electrical equipment, Electrical installation, Last piece, Lights, Other, Special offers

• Parameters

• Documents for download

• Ratings and reviews1

• Questions about the product0

Buy

Add to favourites

Product code: SM0096
