  • Product description

    • 1-phase circuit breaker, which is designed for installation on a DIN rail.
    • It contains protection against overloads and short circuits.
    • Suitable for use in households or in commercial and industrial areas.
    • Number of modules (phases): 1.
    • Switching characteristic: C.
    • Rated short-circuit switching capacity Icn: 10 kA.
    • Rated current: 16 A.
    • Rated voltage: 230/400 V AC, 72 V DC (min. 12 V AC, 12 V).
    • Rated frequency: 50/60 Hz.
    • Tightening torque: 2,8 Nm.
    • Connection of stranded/rigid copper conductor: max. 35 mm².
    • Connection of flexible copper conductor: max. 25 mm².
    • Maximum busbar cross-section: 10 mm².



    Brand:

    ABB

    This product is listed in the following categories

    ABB, Brands, Electrical equipment, Electrical installation, Other
  • Parameters

  • Documents for download

  • Ratings and reviews1

  • Questions about the product0

5.00

/ 1

Product ratings

5.00

average rating It is calculated from all added star ratings (on the website + translated from other websites). That is done by adding up the total number of stars and then dividing the result by the number of reviews. You can read more about collecting product reviews in our Business Terms and Conditions.

100%

customers recommend

23

customers have already purchased

1
0
0
0
0
Detailed rating

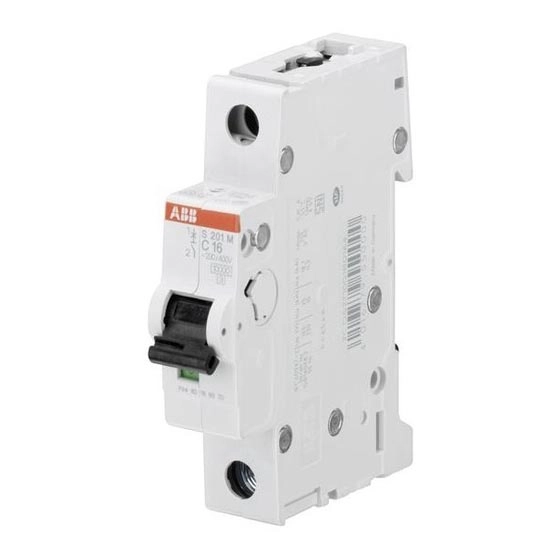

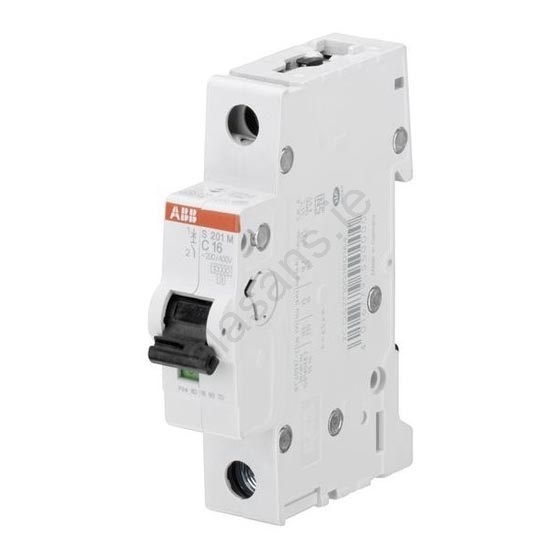

ABB 2CDS271001R0164 - 1-phase circuit breaker S201M-C16 230V

8,29
-35%

12,90

This item is no longer available

Product code: SM0078
