• Product description

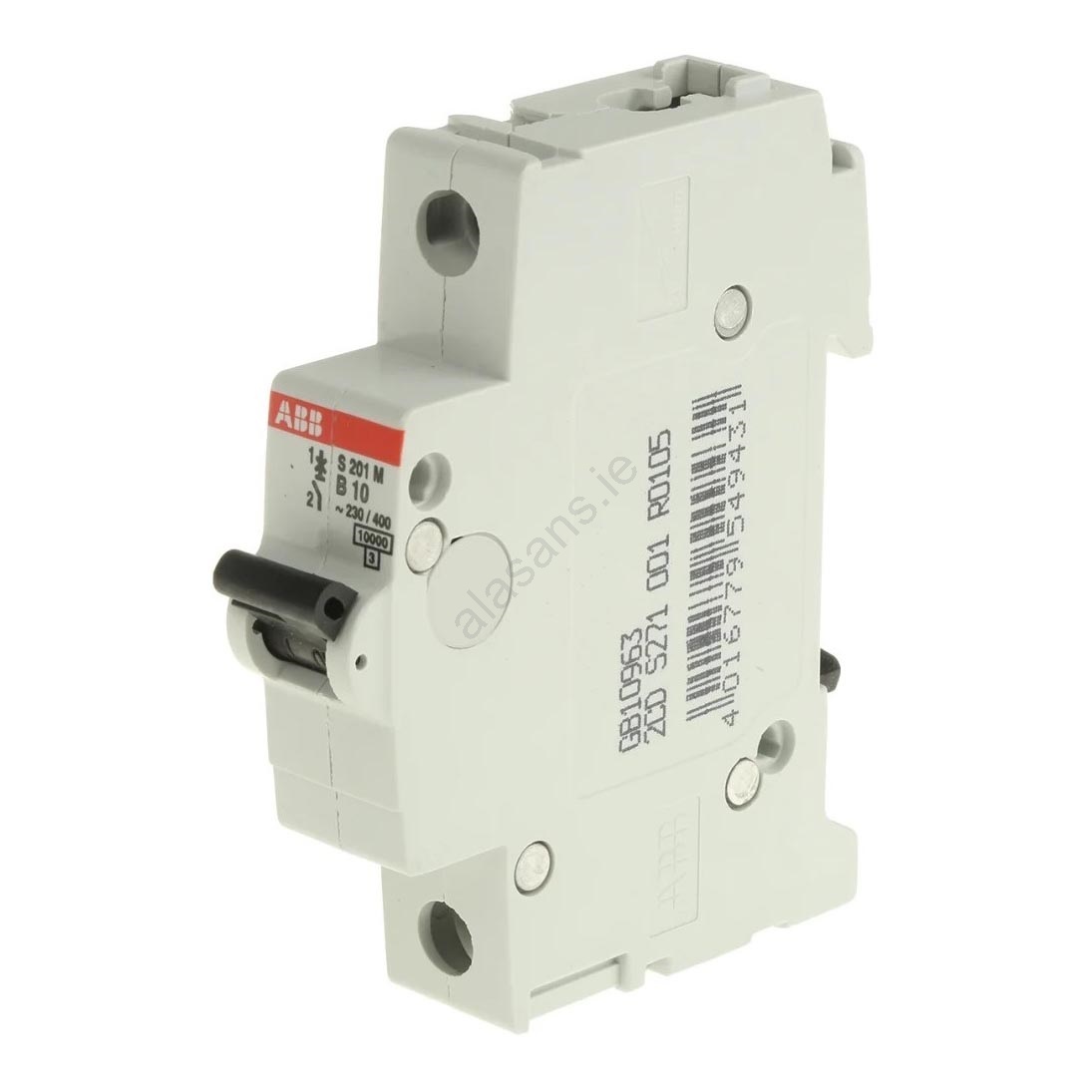

  • Single-phase circuit breaker designed for installation on a DIN rail.
  • Includes overload and short-circuit protection.
  • Suitable for use in residential, commercial, and industrial areas.
  • Number of modules (phases): 1.
  • Tripping characteristic: B.
  • Rated short-circuit breaking capacity Icn: 10 kA.
  • Rated current: 10 A.
  • Rated voltage: 230/400 V AC, 72 V DC (min. 12 V AC; 12 DC).
  • Rated frequency: 50/60 Hz.
  • Tightening torque: 2.8 Nm.
  • Connection for stranded/solid copper conductor: max. 35 mm².
  • Connection for flexible copper conductor: max. 25 mm².
  • Maximum cross-section of busbar: 10 mm².







  Special coupon offer applies to this product.

  Brand:

  ABB
