• Product description

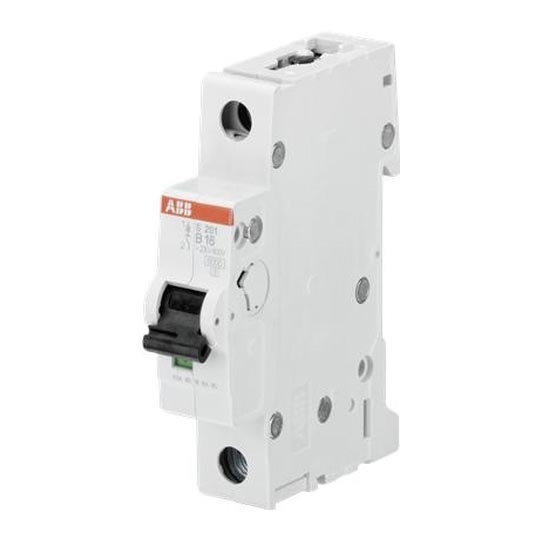

  • 1-phase circuit breaker, which is designed for installation on a DIN rail.
  • It contains protection against overloads and short circuits.
  • Suitable for use in households or in commercial and industrial areas.
  • Rated short-circuit switching capacity Icn: 6 kA.
  • Switching characteristic: B.
  • Number of phases (modules): 1.
  • Rated current: 2 A.
  • Rated voltage: 230 V.
  • Rated frequency: 50/60 Hz.
  • Connection of stranded/rigid copper conductor: max. 35 mm².
  • Connection of flexible copper conductor: max. 25 mm².
  • Tightening torque: 2,8 Nm.
  • Maximum busbar cross-section: 10 mm².







  Special coupon offer applies to this product.

  Brand:

  ABB



  This product is listed in the following categories

  ABB, Brands, Electrical equipment, Electrical installation, Other

• Parameters

• Documents for download

• Ratings and reviews3

• Questions about the product0

Buy

Add to favourites

Product code: SM0080
